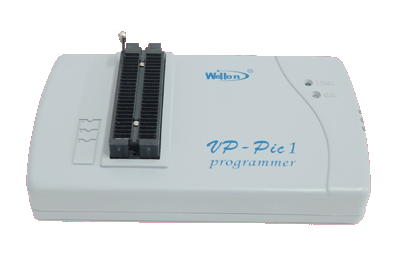

VP-PIC1(Stop production)




USER MANUAL English TraditionalChinese Polish

FEATURES:
Dimension:166*98*23mm,weight:290g.
Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/2.0A; power:18W
48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port.
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Optimum programming for each individual device
Device insertion and poor-pin-contact check
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Super programming speed.
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)
Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portugueseand and Dutch.

DEVICE SUPPORT: VIEW
Microchip:PIC12CXX¡¢PIC16CXX¡¢PIC18CXX¡¢PIC16FXX¡¢PIC18FXX¡¢MCP25XX¡¢E(E)PROM,etc.



DEVICE UPDATES:
WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through internet http://www.weilei.com. WEILEI also adds devices upon customer's request at its option.


ORDERING INFORMATION:
programmer,cable, manual, software included
15 day moneyback guaranty, one year warranty

WARRANTY & TECHNICAL SUPPORT:
Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase. Technical support is available by phone Monday through Friday 9:00am to 5:00pm.








E-mail:weilong@weilei.com.cn Support:support@weilei.com.cn
Tel:86-22-83945122 fax:86-22-83945121
B4-1-402 Hi-tech innovation base£¬No.16,the 5th Haitai Development Street
Huayuan Industrial Park, Hi-tech Industrial Zone, Tianjin ,P.R.C,300384
Tianjin Weilei Technology Ltd. P.R.China
